About Us
Since 1996
The Fluid Mixer range of impeller systems accommodates all fluid mixing operations.
Fluid Mixers have the technology and experience to guarantee the equipment and mixing process performance.
Our services
Impeller Technology
The Fluid Mixers range of impeller systems accommodate all fluid mixing operations.
Mixer Drives
The range of mixer drives available from Fluid Mixers accommodates mixing of all fluids in batch.
Aerators
An aerator is a mechanical device used for aeration, or mixing air with another substance, such as water or soil. The word aerator may also refer to: Faucet aerator. Floating surface aerator, used in wastewater treatment.
High Shear Mixers
Based upon the well established rotor-stator high shear workhead configuration, the Fluidiser.
IMPELLER TECHNOLOGY
FLUID 3000
The Fluid 3000 is a third generation, direct axial flow foil section impeller system. The Fluid 3000 was developed in our fluids laboratory and draws heavily upon Fluid Mixers, experience of thousands of actual installations. Optimum blade contour, chord angles, twist ratio and stable leading edge profile yield a high performance impeller system with minimised shear and optimised flow characteristics. The Fluid 3000 impeller is the mixing system of
choice for all low viscosity, flow controlled mixing operations.
Applications
- Blending
- Solids in Suspension
- Dissolution
- Heat Transfer
- Other Flow-Controlled Mixing Operations
FLUID 9300
The Fluid 9300 is a broad blade, moderate shear impeller system developed specifically for medium viscosity (50
000 cP or mPa.s) mixing applications.
The Fluid 9300 is a greatly improved impeller system when compared to the pitch blade turbine which has remained
popular for medium viscosity mixing applications.
The moderate shear characteristic of this impeller produces a mixing system which also performs well in other
applications requiring this attribute.
Applications
- Low to Medium Viscosity Blending
- Solids in Suspension
- Dissolution
- Non-Newtonian Fluids
FLUID 9400
The Fluid 9400 is a four bladed, foil section high solidity ratio impeller system.
Applications
- Gas Dispersion
- Biological Leach Gas Dispersion and Solids Suspension
- Other duties which require a high mixing flow density such as solids repulping, high intensity mixing and suspension of coarse and/or dense solids.
FLUID 4020
The Fluid 4020 is a four-bladed curved blade turbine producing a radial discharge flow pattern. The backswept blades and central anti-fowling disk produce an impeller with anti-ragging, anti-snagging characteristics.
Applications
- Anoxic & Anaerobic Zone Sewage Treatment Basins
- Other Water Treatment Plants
- Mixing of Liquids Containing Tramp Material
VS-200 Mixing Systems
Fluid Mixers design and manufacture a repertoire of over 60 various impeller systems, each for specialised applications to produce optimum
mechanical and process mixing performance. Specialised impellers are available for solvent extraction, biological leaching, water treatment,
autoclave pressure leach and all other fluid mixing applications. A summary of other impeller systems designed and manufactured by Fluid Mixers
are listed below.
Impeller Systems
- Fluid SR-999 Serrated Blade Impeller System
- Solvent Extraction Head/Flow Turbine
- Curved Blade Aerofoil Water Treatment Impeller
- 32 Degree Pitch Blade Turbine
- 45 degree Pitch Blade Turbine
- Vertical Flat Blade Turbine
- DSP-400 High Shear Rotor-Stator Workhead
MIXER DRIVES

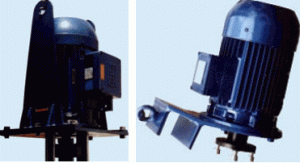

SERIES 6000
The Series 6000 direct drive extends from fractional kilowatt units up to 220 kW industrial machines as utilised in
our Fluidiser® high shear mixer range.
Impeller Systems
- Portable Mixers
- Fluidiser® High Shear Mixers
SERIES 7000
The Series 7000 mixer drive range features in-line helical speed reduction assemblies. All gear casings are of fine
grained, premium grade cast iron.
Impeller Systems
- Portable Mixers
- Light to Medium Duty Industrial Agitators
SERIES 8000
The series 8000 mixer drive range features parallel shaft helical speed reduction assemblies.
Impeller Systems
- Medium Duty Industrial Agitators
SEALING SYSTEMS
All mixer drives manufactured by Fluid Mixers are available with a range of shaft seal options.
Impeller Systems
- Dust Cap
- Lip Seal
- Packed Gland (Stuffing Box)
- Single Mechanical Seal
- Double Mechanical Seal
For closed tanks under pressurised conditions, mixers are manufactured with mounting flanges conforming to ASME or DIN specifications.
